Customised power electronic solutions for a wide range of battery storage applications

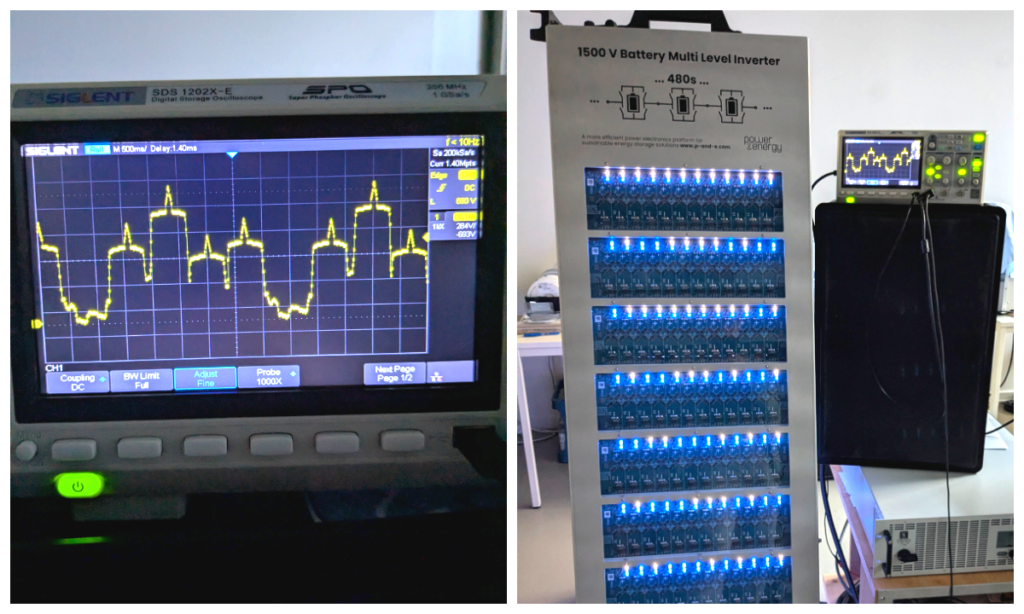

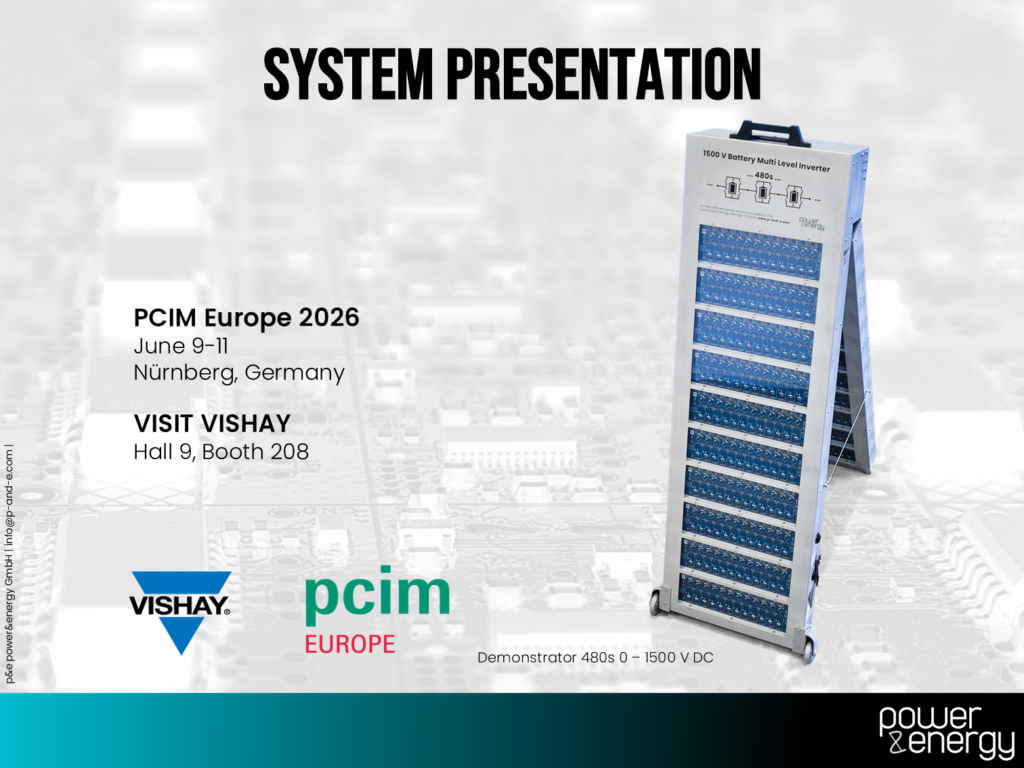

Demonstrator 480s 0 – 1500 V DC

Your Advantages

0 %

Up to 20 % lower costs

0 %

Up to 50 % longer lifetime

0 %

Losses reduced by up to 90 %

The integration of previously separate components into one platform has the dual benefit of reducing costs by up to 20 % while also increasing the efficiency and reliability of the overall system.

The use of intelligent charging and discharging processes, which are individually tailored to each cell in the system, prolongs the service life compared to existing solutions.

The use of compact and efficient power electronics at the cell level has the potential to reduce energy losses by up to 90 %.

our Technology

Economic Efficiency

Lower manufacturing cost:
Less components and process steps
Cheaper service:
Particularly safe even for personell without special training
Supplier independence:
Compatible with a wide range of components and battery cells

Market Positioning

Efficiency over 98 %:
Less additional power electronics needed
Longer lifespan:
Stress on weak cells actively reduced
High safety:
No dangerous voltages when switched off

Rapid Market Readiness

Quick and easy integration:
Open software interfaces
Highly scalable:
Currently up to 1500 V and 200 A AC, DC, Any-C
Individual support:
With the integration of our solution

Principle of operation

Open

Bypass

Positive

Negative

Default (off) state
All battery terminals
disconnected
Maximized safety:
system output is 0 V

Stage does not contribute
to system output voltage
Longer lifetime: weak cells
are loaded less, defective
cells are bypassed
System not limited by weak
or defective cells

Stage switched for positive
output voltage

Stage switched for negative
output voltage

For a complete system, many battery cell
stages are connected in series.
Our power electronics platform controls all
stages to deliver the desired system output.

System topology

TECHOLOGICAL Advantages

Universal applications

Stationary

Storing renewable energy
Sector coupling
UPS backup power
Fast charging EVs
Grid support

Mobile

Ships
Commercial vehicles
Cars

And many more!

Software defined

voltage type
voltage range
frequency range
current range
cell chemistry

Modular implementation

For a wide range of battery systems

User Interface

Our user interface enables precise cell monitoring, clearly displaying key parameters such as state of charge (SOC) and temperature. The dashboard allows early detection of anomalies, facilitating quick diagnostics and reducing maintenance efforts. With remote access, you can monitor your system anytime, anywhere, ensuring maximum efficiency and reliability.

our page on LinkedIn

Please refer to the company page on LinkedIn for further information.

Join us on LinkedIn to learn more about our innovative storage technology and receive the latest updates.

Let us know if you would like to find out more or if you have any questions.

Our Publications

Title: Multilevel battery converter with cascaded H-bridges on cell level-battery management system or a renewed attempt for Power Electronic Building Blocks?

Published: 2022 24th European Conference on Power Electronics and Applications (EPE’22 ECCE Europe)

Title: Scalable battery cell cascaded H-bridge converter

Published: 2022 PESS + PELSS 2022; Power and Energy Student Summit

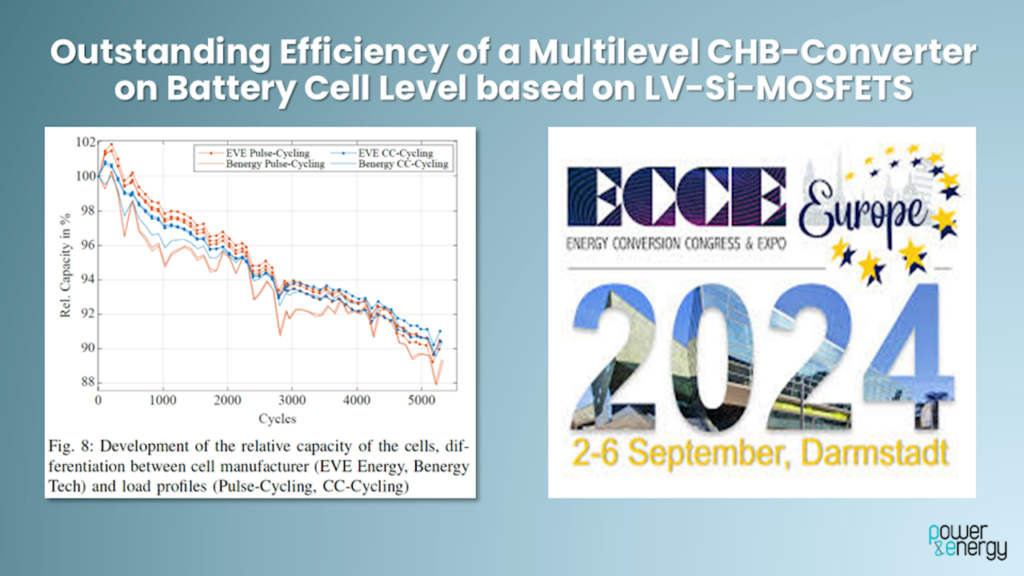

Title: Outstanding Efficiency of a Multilevel CHB-Converter on Battery Cell Level based on LV-Si-MOSFETS

Published: 2024 Energy Conversion Congress & Expo Europe (ECCE Europe)

the path to licensing

Step 1: Initial consultation

We are pleased to offer you our comprehensive expertise in multi-level converter technology. We would be delighted to conduct a non-binding preliminary discussion with you to evaluate the integration of our technology.

Step 2: Concept analysis

Our team will analyze your energy system to identify the optimal solution for your requirements. This will include optimizing your energy storage system, as well as the components and software, to enhance the performance of your battery storage system.

Step 3: Provision

We provide all the necessary hardware components, the associated documentation, PCB assemblies, and software for a seamless implementation. All of this is provided under a personalized license agreement.

Our energy storage challenge

Our development work is the result of passionate research and development work that is characterized by a clear objective. We develop innovative solutions that improve the efficiency of energy storage and maximize the use of renewable energy.
At p&e, we are committed to shaping a more sustainable future. Each stage of our project brings us closer to a world where energy is used more efficiently and clean energy sources shape the way we live.
The objective of this platform is to facilitate a new era of energy innovation, address the challenges of climate change, and optimize energy efficiency.
